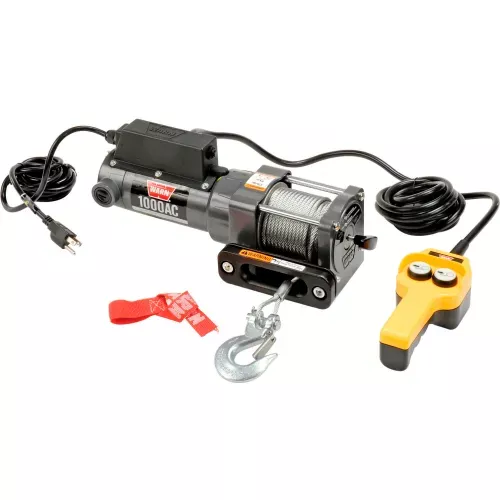

This Warn® Winch allows you to pull or drag anything, anywhere! Ideal for use wherever 120 Volt AC power is available, this utility winch delivers 1000 lbs. of pulling capacity. A long duty cycle and legendary Warn durability make this the tool you can rely on to get the job done.
Features include: · Strong 1000 lb. pulling capacity · Superior Duty Cycle · 43’L of 3/16″ wire rope · Smooth and durable planetary geartrain · Powerful permanent-magnet motor with serviceable brushes for long life · Pull & Turn freespooling clutch · Self-braking transmission · 2″ drum diameter · 261:1 gear ratio · Mounting Hole Pattern: 4-holes, 3.1″ x 2.5″ · Sealed, pendant-style remote with 8′ lead · 6’L power cord · 18-3/4″L x 8″W x 11″H; weighs 27 lbs. 1 Year Limited Warranty
Performance Specs
Load Lbs.
Current Amps
Speed Ft./Min.
0
.7
10.1
250
1.6
9.5
500
3.2
8.3
750
4.8
7.4
1000
6.5
6.6
Note: Above performance specs are based on first layer of drum
